External protection

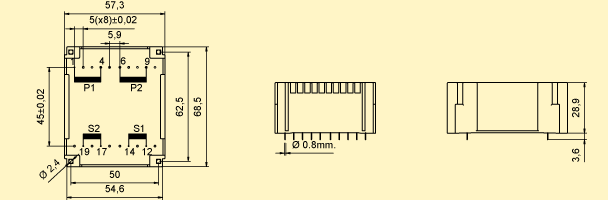

U3914

UI 39/13,5

External protection

18.0 VA - 40ºC/B

15.0 VA - 70ºC/B

Logo CE

Acording regulations:

EN61558 EN60590 EN60472 UL506 UL1585

Dual primary

2x( 115 )

Simple secondary(V):

Dual secondary(V):

2x( 4.5 / 6.0 / 7.5 / 9.0 / 12.0 / 15.0 / 18.0 / 24.0 )

Vo/Vn:

1.35 (Vo-no load voltage, Vn-load voltage)

 U3914

Weight/unit:

405 gr

> PRIM. (1 - 3 / 8 - 10) SEC. (12 - 14 / 17 - 19)

> PRIM. (1 - 4 / 6 - 9) SEC. (12 - 14 / 17 - 19)

PRIM. (1 - 3 / 8 - 10) SEC. (12 - 14 / 17 - 19)

HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3914007 18.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 2000.0 mA 2000.0 mA 2x6.0 V
U3914000 18.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 1500.0 mA 1500.0 mA 2x8.1 V
U3914001 18.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 1200.0 mA 1200.0 mA 2x10.1 V
U3914002 18.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 1000.0 mA 1000.0 mA 2x12.1 V
U3914003 18.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 750.0 mA 750.0 mA 2x16.2 V
U3914004 18.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 600.0 mA 600.0 mA 2x20.2 V
U3914005 18.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 500.0 mA 500.0 mA 2x24.3 V
U3914006 18.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 375.0 mA 375.0 mA 2x32.4 V
U3914507 18.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 2000.0 mA 2000.0 mA 2x6.0 V
U3914500 18.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 1500.0 mA 1500.0 mA 2x8.1 V
U3914501 18.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 1200.0 mA 1200.0 mA 2x10.1 V
U3914502 18.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 1000.0 mA 1000.0 mA 2x12.1 V
U3914503 18.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 750.0 mA 750.0 mA 2x16.2 V
U3914504 18.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 600.0 mA 600.0 mA 2x20.2 V
U3914505 18.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 500.0 mA 500.0 mA 2x24.3 V
U3914506 18.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 375.0 mA 375.0 mA 2x32.4 V

PRIM. (1 - 4 / 6 - 9) SEC. (12 - 14 / 17 - 19)

U3914
HR Ref. Power Ambient temperature

Ta

 Primary Secondary
VA Vn Vn In

Vo

(In=0)
P1 P2 S1 S2 S1 S2
U3914507 18.0 VA 40/B 115 V 115 V 4.5 V 4.5 V 2000.0 mA 2000.0 mA 2x6.0 V
U3914500 18.0 VA 40/B 115 V 115 V 6.0 V 6.0 V 1500.0 mA 1500.0 mA 2x8.1 V
U3914501 18.0 VA 40/B 115 V 115 V 7.5 V 7.5 V 1200.0 mA 1200.0 mA 2x10.1 V
U3914502 18.0 VA 40/B 115 V 115 V 9.0 V 9.0 V 1000.0 mA 1000.0 mA 2x12.1 V
U3914503 18.0 VA 40/B 115 V 115 V 12.0 V 12.0 V 750.0 mA 750.0 mA 2x16.2 V
U3914504 18.0 VA 40/B 115 V 115 V 15.0 V 15.0 V 600.0 mA 600.0 mA 2x20.2 V
U3914505 18.0 VA 40/B 115 V 115 V 18.0 V 18.0 V 500.0 mA 500.0 mA 2x24.3 V
U3914506 18.0 VA 40/B 115 V 115 V 24.0 V 24.0 V 375.0 mA 375.0 mA 2x32.4 V
U3914557 15.0 VA 70/B 115 V 115 V 4.5 V 4.5 V 1667.0 mA 1667.0 mA 2x6.0 V
U3914550 15.0 VA 70/B 115 V 115 V 6.0 V 6.0 V 1250.0 mA 1250.0 mA 2x8.1 V
U3914551 15.0 VA 70/B 115 V 115 V 7.5 V 7.5 V 1000.0 mA 1000.0 mA 2x10.1 V
U3914552 15.0 VA 70/B 115 V 115 V 9.0 V 9.0 V 833.0 mA 833.0 mA 2x12.1 V
U3914553 15.0 VA 70/B 115 V 115 V 12.0 V 12.0 V 625.0 mA 625.0 mA 2x16.2 V
U3914554 15.0 VA 70/B 115 V 115 V 15.0 V 15.0 V 500.0 mA 500.0 mA 2x20.2 V
U3914555 15.0 VA 70/B 115 V 115 V 18.0 V 18.0 V 417.0 mA 417.0 mA 2x24.3 V
U3914556 15.0 VA 70/B 115 V 115 V 24.0 V 24.0 V 312.0 mA 312.0 mA 2x32.4 V
